Dual-Shaft Shearing Tire Recycling Machine with Variable Frequency Control and CE ISO SGS Certification

Dimension(l*w*h) : adjustable

Application : Rubbers Recycling Industry,Waste Tire Recycling Machine,Recycle waste tyre

Raw material : rubber/tire

Product name : Tire Recycling Machinery

Power(w) : 1.5KW - 75 KW

Tire machine type : Tire Recycling Machine

Brand Name : SFC

Model Number : ZPS

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1set

Price : $50,000.00 - $129,999.00/ Unit

Payment Terms : T/T

Supply Ability : 50 sets/month

Delivery Time : 45 days

Packaging Details : wooden cases or container

Type : Tire Machine,Rubber Cutting Machine,Rubber shredder

Contact Now

High Technology Hot Sale Tire Recycling Machinery & Rubber Shredder
Product Overview

This whole tire crusher is a specialized shredding machine developed for waste rubber tires. It can directly crush intact tires including passenger car tires, truck tires, trailer tires, engineering tires, and agricultural radial tires without manual dismantling or pre-cutting.

Adopting the dual-shaft shearing crushing principle and equipped with high-strength cutter sets, reinforced frame, and variable frequency control system, the machine enables continuous and automatic operation. It achieves preliminary separation of rubber and steel wires from crushed materials, serving as key equipment for tire recycling, solid waste disposal, and environmental-friendly resource utilization industries.

Automated Production Line Process
  • Waste Tires
  • Single Hook Debeader
  • Tire Cutter
  • Whole Tire Shredder
  • Rubber Crusher
  • Screen, Conveyor Belt, Magnetic Plants
  • Fiber Separator
  • Fine Rubber Powder Grinding Machine
  • Rubber Powder

Through the tire shredding machine, tires are first processed into small blocks, then the crushing unit crushes and grinds the rubber blocks to obtain rubber granules. Through magnetic separation, screening, and conveying units, steel wire and rubber are completely separated, producing pure rubber granules of 2-26 mesh fineness. For finer rubber powder (30-120 mesh), the rubber powder grinding machine is required.

Main Equipment
Single Hook Debeader LSJ-1200
Use: Pulling out the wire loops from the mouth of waste tires.
Tire Cutter QDJ-1200
Use: Cut the whole waste tires into small parts.
Whole Tire Shredding Machine ZPS-900, 1200
Use: Directly crushes tires smaller than 1200mm. At general temperature, can be put directly crushed into 50×50mm blocks for subsequent grinding into 10-30 mesh or wire and fiber separation.
Double Rolls Rubber Crusher XKP-400/450/560/610
Use: Mainly used for cracking large rubber blocks into 2-26 mesh small rubber granules.

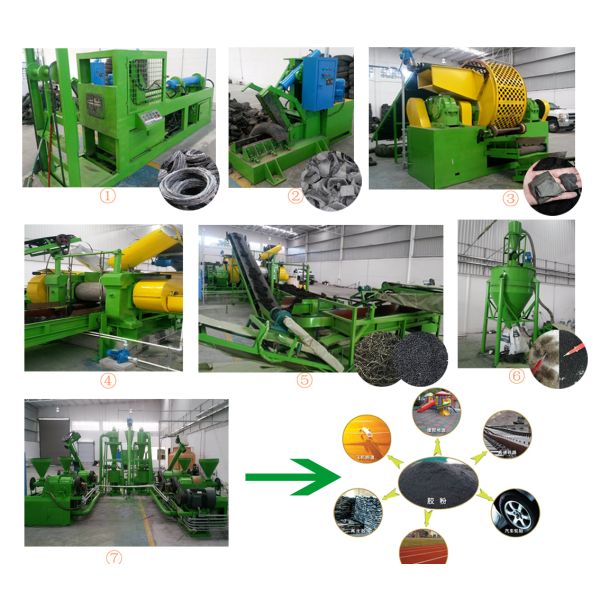

Reference Photos
Dual-Shaft Shearing Tire Recycling Machine with Variable Frequency Control and CE ISO SGS Certification Dual-Shaft Shearing Tire Recycling Machine with Variable Frequency Control and CE ISO SGS Certification Dual-Shaft Shearing Tire Recycling Machine with Variable Frequency Control and CE ISO SGS Certification
System Structure
Item Quantity Usage
Hook debeader 1 set Pull out the wires directly from the tire bead
Whole tire cutter 1 set Cut the whole waste tires into small parts
Whole tyre shredder (with conveyor) 1 set Shredding the waste tires or rubber blocks into 50×50mm
Double Rolls Rubber Crusher 1 set Crush the above 50×50mm block into the 2-26 mesh rubber granules
Auxiliary machinery - Big conveyor equipment 1 set Conveying the rubber granule, Separate steel wire, and screen the granules
Auxiliary machinery - Small conveyor equipment 1 set Additional conveying capacity
Auxiliary machinery - Big Magnet separator 1 set Steel wire separation
Auxiliary machinery - Small Magnet separator 1 set Additional magnetic separation
Auxiliary machinery - Big Shaking screen 1 set Primary screening of granules
Auxiliary machinery - Small Shaking screen 1 set Secondary screening of granules
Fiber separator (with feeding systems) 1 set Separate the fine fabric from the rubber granule
Rubber Powder Grinding Machine (with auxiliary equipments) 1 set Grinding the above rubber granules into 30-120 mesh rubber powder
